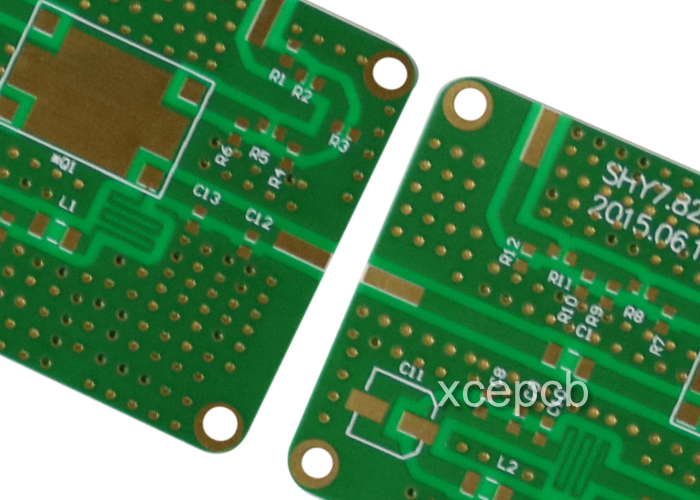

Car Electronic PCB Board High Thermal Conductivity Multi Layer Printed Circuit Board Manufacturing

Brand Name : XCE

Model Number : XCEM

Certification : CE,ROHS, FCC,ISO9008,SGS,UL

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T,Western union

Supply Ability : 1, 000, 000 PCS / week

Delivery Time : 5-10 days

Packaging Details : inner: vacuum-packed bubble bag outer: carton box

Product name : Car electronics PCB

Size : 18*9cm

Surface finish : Immersion gold

Board thickness : 1.6mm

Contact Now

Car Electronics Multilayer PCB With High Thermal Conductivity Functions

Specification:

Model	XCEM	Origin	Shenzhen
Min line space	3mil	Min line width	3mil
Size	18*9cm	Copper foil	70UM
Layer	6	Material	FR4

Parameter:

Technology	Capabilities	Capabilities
Max.Layer Count	30 Layers	30 Layers
Max.Panel Size	27.5"x24"	27.5"x24"
Max.Board Thickness	3.5mm	5.8mm
Outer Layer	3.5/3.5mils	3/3mils
Inner Layer	3.5/3.5mils	3/3mils
Min.Board Thickness	2L:6mils	2L:6mils
	4L:15mils	4L:15mils
	6L:23mils	6L:23mils
Min.SMT/BGA Pitch	12mils for SMT	12mils for SMT
	24mils for BGA	20mils for BGA
Min.Drill Size&Aspect Ratio	0.2mm Drill for 0.8mm Thickness(4.0:1)	0.2mm Drill for 0.8mm Thickness(4.0:1)
	0.25mm Drill for 1.6mm Thickness(6.4:1)	0.25mm Drill for 1.6mm Thickness(6.4:1)
	0.30mm Drill for 2.4mm Thickness(8.0:1)	0.30mm Drill for 2.4mm Thickness(8.0:1)
Surface Finishes	HASL	HASL
	Selective Immersion Tin	Selective Immersion Tin
	Immersion Silver	Immersion Silver
	Immersion Gold	Immersion Gold
	Hard Gold	Hard Gold
	OSP	OSP
	Gold finger	Gold finger
Controlled Impedance	+/- 10%	+/-7%
Contouring	Routing, V-Groove,	Routing, V-Groove,
	Beveling Punch	Beveling Punch
Hole Diameter	+/- 2 mil	+/- 2 mil
Min.S/M Thickness	0.4 mil	0.6 mil

Our Quality:

We are committed to providing the HIGHEST QUALITY PCBs that not only meet but exceed our customers’ expectations and requirements. Our facilities hold a list of quality certifications (IS9001, TS16949, UL) and the systems to support them. For quality control purposes, we have invested extensively in inspection machinery, including:

High-voltage E-test
   Flying probe machine
   Digital computer metallographic microscope
   Copper thickness tester
   Solderability detecting machine
   Photoelectricity balance
   X-ray gold thickness tester
   Backlighting tester
   Automatic optical inspector
